Aronga
Tauwhāiti

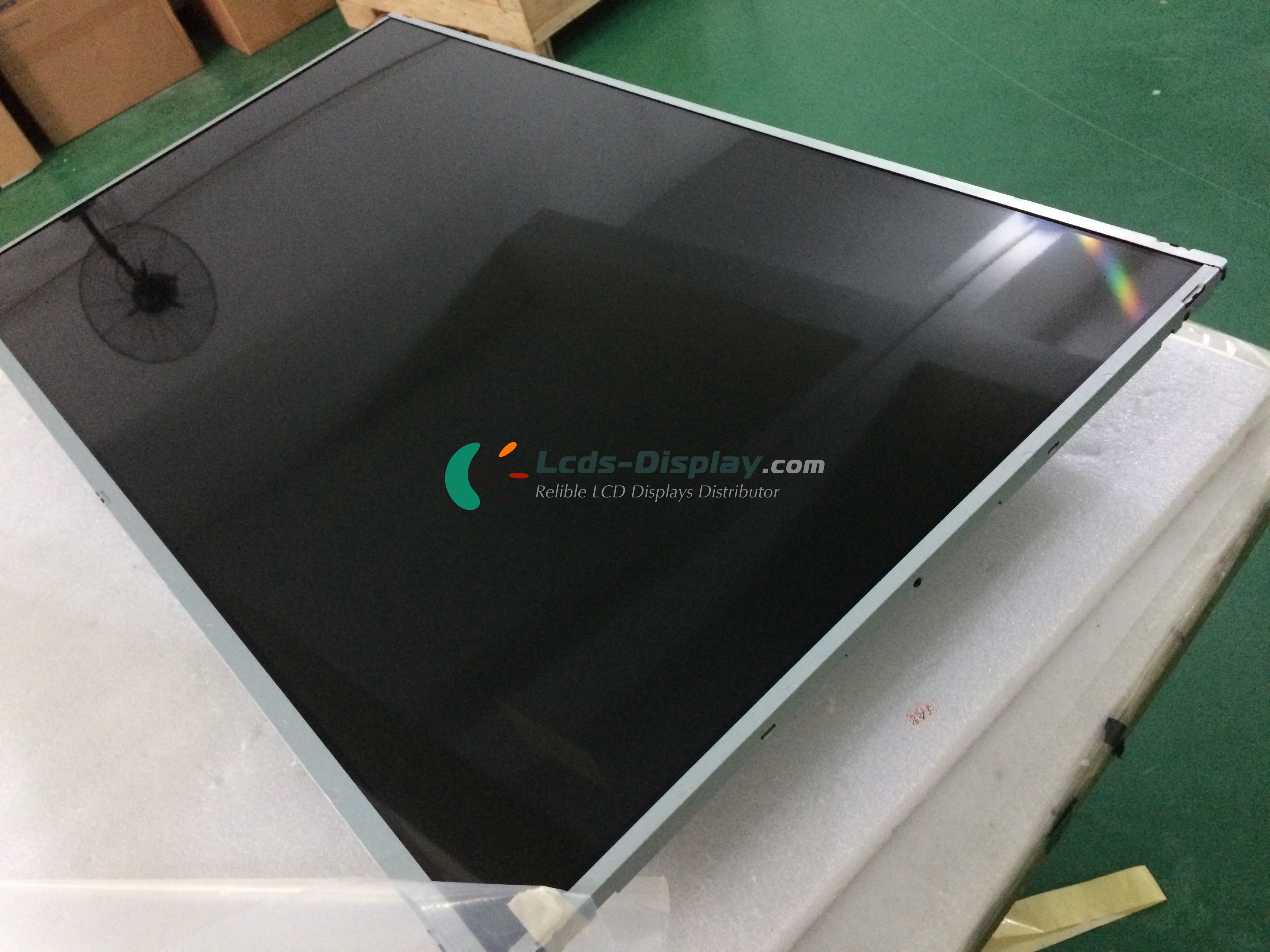

BRS420H2
BRS420H2 Mōhiohio Taketake
| Tauira tauira | BRS420H2 |
|---|---|
| Pae Waitohu | BERISE |
| Tuhinga | a-Si TFT-LCD ,42 inch, 1920×1080 |
| Momo Raraunga | a-Si TFT-LCD |
| BRS420H2 Utu | Tono Tono me te Waa Whakahaere |
| Tae Mahi | 0 ~ 50 °C |
| Haumaru Ruinga | -20 ~ 60 °C |
BRS420H2 Ngā Hangarau Hangarau
| Whakatau Whakamutunga | 1920(RGB)×1080 (FHD) |
|---|---|
| Pihikete Pika | RGB Vertical Stripe |
| Pihanga Pika | 52 PPI |
| Whakaaro Ratonga | 16:9 (H:V) |
| Factor Puka | Flat Rectangle Display |
| Poutoro Poto | 0.1611×0.4833 mm (H×V) |
| Pika Pihanga | 0.4833×0.4833 mm (H×V) |
| Taumaha | 6.3/7.0Kgs (Typ./Max.) |
| Mata | Antiglare (Haze 1%), Hard coating (3H) |
| Area Mahinga | 927.94×521.94 mm (H×V) |
| Bezel Area | 937.0×531.0 mm (H×V) |
| Rautaki Whakahuahua | 955.8×554.4 mm (H×V) |
| Whakaaturanga Whakahuahua | 35.0 (Typ.) mm |
| Nga Whenua Whenua ranei | Landscape type |
| Pae Tae | Without |
BRS420H2 Ngā Āhuahira Arotahi
| Whakaatu Aratau | Normally Black, Transmissive |
|---|---|
| Maama | 1500 cd/m² (Typ.) |
| Whakatau Ratonga | 1200 : 1 (Typ.) (Transmissive) |
| Whakaatu Tae | 16.7M (8-bit) |
| Tae Tae | 71% NTSC (CIE1931) |
| Wā Whakautu | 6 (Typ.)(G to G) |
| Tirohia te Angle | 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) |
| Tirohanga Whakahaere | Symmetry |
| Te tae matomato Kakano | Wx:0.281; Wy:0.288 |
| Maama te Maama | Y |
BRS420H2 Hangarau Hangarau
| Putanga Poutū | 60Hz |
|---|---|
| Whakaaro Whakamuri | No |
BRS420H2 Pūnaha Ataata
| Tumuaki Poko | Edge light type |
|---|---|
| Momo Momo | WLED |
| Te wa mo te rama | 3K(Min.) (Hours) |
| Momo Atanga | Connector |
| Papa Pouaka Papa | No |
BRS420H2 Atanga Waitohu
| Waitohu Waitohu | LVDS |
|---|---|
| Pato Waitohu | LVDS (2 ch, 8-bit) |
| Putanga o te Whakauru mo te Paewhiri | 12.0V (Typ.) |
| Te Whakauru Naianei mo te Paewhiri | 530/690mA (Typ./Max.) |
| Whakaoranga Mana Whakahaere | 6.4/8.3W (Typ./Max.) |
| Momo Atanga | Connector |
| Atanga Waitohu | JAE - FI-RE51S-HF, Pitch:0.5 mm, Pin:51 pins |
