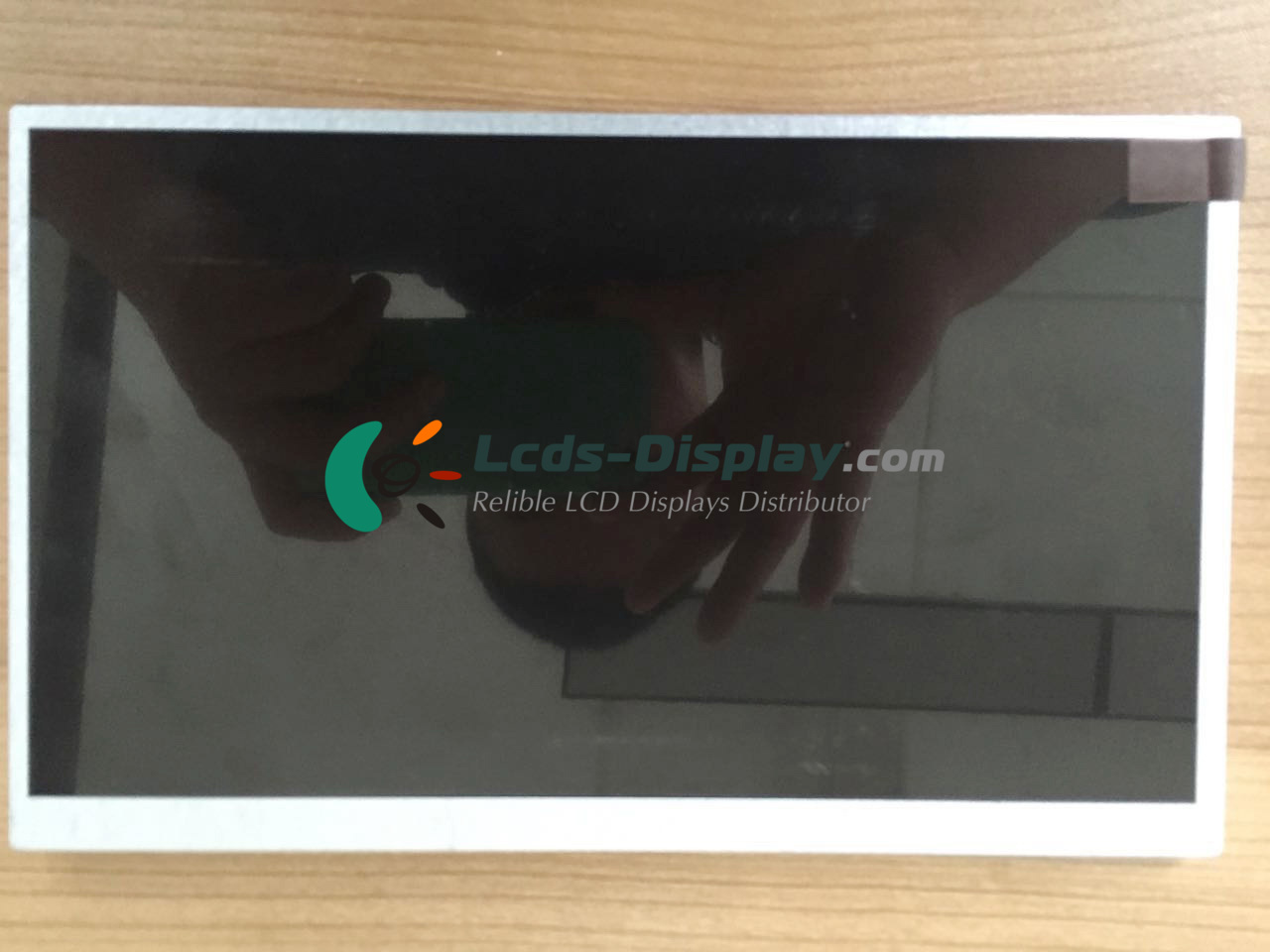

AT101WSM-NW0-3800(3900)
AT101WSM-NW0-3800(3900) Mōhiohio Taketake
| Tauira tauira | AT101WSM-NW0-3800(3900) |
|---|---|
| Pae Waitohu | BOE |
| Tuhinga | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Momo Raraunga | a-Si TFT-LCD |
| AT101WSM-NW0-3800(3900) Utu | Tono Tono me te Waa Whakahaere |
| Tae Mahi | -20 ~ 70 °C |
| Haumaru Ruinga | -30 ~ 80 °C |
AT101WSM-NW0-3800(3900) Ngā Hangarau Hangarau
| Whakatau Whakamutunga | 1024(RGB)×600 (WSVGA) |
|---|---|
| Pihikete Pika | RGB Vertical Stripe |
| Pihanga Pika | 117 PPI |
| Whakaaro Ratonga | 16:9 (H:V) |
| Factor Puka | Flat Rectangle Display |
| Poutoro Poto | 0.0725×0.2175 mm (H×V) |
| Pika Pihanga | 0.2175×0.2175 mm (H×V) |
| Taumaha | 300 (Max.) |
| Mata | Antiglare (Haze 25%) |
| Area Mahinga | 222.72×125.28 mm (H×V) |
| Bezel Area | 225.92×128.48 mm (H×V) |
| Rautaki Whakahuahua | 235×143 mm (H×V) |
| Whakaaturanga Whakahuahua | 4.5±0.3 mm |
| Nga Whenua Whenua ranei | Landscape type |
| Pae Tae | Without |
AT101WSM-NW0-3800(3900) Ngā Āhuahira Arotahi
| Whakaatu Aratau | TN, Normally White, Transmissive |
|---|---|
| Maama | 500 cd/m² (Typ.) |
| Whakatau Ratonga | 600 : 1 (Typ.) (Transmissive) |
| Whakaatu Tae | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Tae Tae | 50% NTSC (CIE1931) |
| Wā Whakautu | 25 (Typ.)(Tr+Tf) |
| Tirohia te Angle | 80/80/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Te tae matomato Kakano | Wx:0.313; Wy:0.329 |
| Te Maama White | 1.25/1.43 (Typ./Max.)(9 points) |
| Maama te Maama | N |
AT101WSM-NW0-3800(3900) Hangarau Hangarau
| Putanga Poutū | 60Hz |
|---|---|
| Whakaaro Whakamuri | Yes (U/D, L/R) |
| Te Whakamahinga Mana Utu | 3.6W (Max.) |
AT101WSM-NW0-3800(3900) Pūnaha Ataata
| Tumuaki Poko | Edge light type |
|---|---|
| Momo Momo | WLED |
| He nui te raima | 3S7P |
| Hanga Hangaira | Array |
| Te wa mo te rama | 20K(Min.) (Hours) |
| Penehi Rama | 17.4/19.2/21.6V (Min./Typ./Max.) |
| Rama i teianei | 140mA (Typ.) |
| Whakaoho Whakaoho Rama | 3.02W (Max.) |
| Momo Atanga | Connector |
| Papa Pouaka Papa | No |
AT101WSM-NW0-3800(3900) Atanga Waitohu
| Waitohu Waitohu | LVDS |
|---|---|
| Pato Waitohu | LVDS (1 ch, 6/8-bit) |
| Putanga o te Whakauru mo te Paewhiri | 3.3/9.6V (Typ.)(VDD/AVDD) |
| Whakaoranga Mana Whakahaere | 0.33/0.45W (Typ./Max.) |
| Momo Atanga | Connector |
| Atanga Waitohu | STARCONN - 089K60-000100-G2-R, Pitch:0.5 mm, Pin:60 pins |
