KG057QV1CA-G01

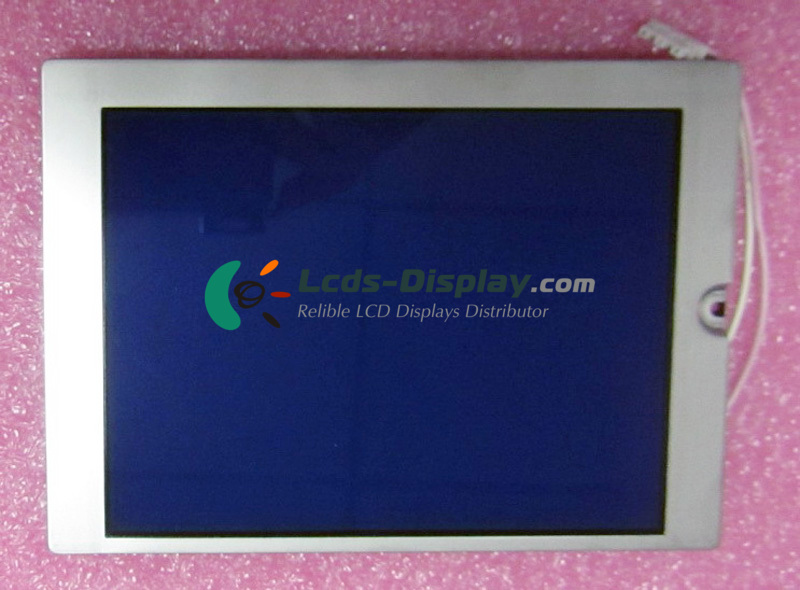

KG057QV1CA-G01 Mōhiohio Taketake
| Tauira tauira | KG057QV1CA-G01 |
|---|---|
| Pae Waitohu | Kyocera |
| Tuhinga | STN-LCD ,5.7 inch, 320×240 |
| Momo Raraunga | STN-LCD |
| KG057QV1CA-G01 Utu | Tono Tono me te Waa Whakahaere |
| Tae Mahi | 0 ~ 60 °C |
| Haumaru Ruinga | -20 ~ 60 °C |
KG057QV1CA-G01 Ngā Hangarau Hangarau
| Whakatau Whakamutunga | 320×240 (QVGA) |
|---|---|
| Pihikete Pika | Rectangle |
| Pihanga Pika | 70 PPI |
| Whakaaro Ratonga | 4:3 (H:V) |
| Factor Puka | Flat Rectangle Display |
| Poutoro Poto | 0.360×0.360 mm (H×V) |
| Pika Pihanga | 0.360×0.360 mm (H×V) |
| Taumaha | 175g |
| Mata | Glare (Haze 0%) |
| Area Mahinga | 115.18×86.38 mm (H×V) |
| Bezel Area | 119.4×90.6 mm (H×V) |
| Rautaki Whakahuahua | 144×104.8 mm (H×V) |
| Whakaaturanga Whakahuahua | 9.0/13.2 (Typ./Max.) mm |
| Horo me nga Poaka | Rear mounting poles (4-Φ2.6) |
| Nga Whenua Whenua ranei | Landscape type |
| Pae Tae | Without |
KG057QV1CA-G01 Ngā Āhuahira Arotahi
| Whakaatu Aratau | STN, Blue mode (Negative), Transmissive |
|---|---|
| Maama | 260 cd/m² (Typ.) |
| Whakatau Ratonga | 4 : 1 (Typ.) (Transmissive) |
| Whakaatu Tae | Monochrome () |
| Wā Whakautu | 210/130 (Typ.)(Tr/Td) |
| Tirohia te Angle | 45/45/20/45 (Typ.)(CR≥2) (L/R/U/D) |
| Te tae matomato Kakano | Wx:0.360; Wy:0.340 |
| Maama te Maama | N |
KG057QV1CA-G01 Hangarau Hangarau
| Putanga Poutū | 75Hz |
|---|---|
| Whakaaro Whakamuri | No |
| Momo Tikanga | Duty: 1/240 |
KG057QV1CA-G01 Pūnaha Ataata
| Tumuaki Poko | Edge light type |
|---|---|
| Momo Momo | CCFL |
| He nui te raima | 1 pcs |
| Te wa mo te rama | 58K(Typ.) (Hours) |
| Penehi Rama | 330V (Typ.) |
| Rama i teianei | 3.0/4.0/6.0mA (Min./Typ./Max.) |
| Nga Mahinga Mahi Paerewa | 40/100KHz (Min./Max.) |
| Aratau Whakaoho Maama | 530/795V (Max.)(Ta=+25/0℃) |
| Momo Atanga | Connector |
| Papa Pouaka Papa | Optional |
KG057QV1CA-G01 Atanga Waitohu
| Waitohu Waitohu | Parallel Data |
|---|---|
| Pato Waitohu | Parallel Data (4-bit) |
| Putanga o te Whakauru mo te Paewhiri | 3.3/5.0V (Typ.)(VDD) |
| Te Whakauru Naianei mo te Paewhiri | 41.5/28.5mA (Typ.)(3.3V/5.0V)(IDD) |
| Momo Atanga | Connector |
| Atanga Waitohu | Kyocera Elco - 08-6210-020-340-800, Pitch:0.5 mm, Pin:20 pins |
