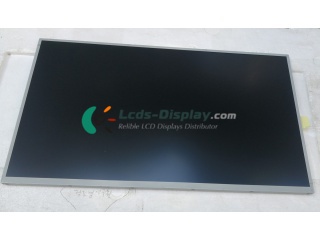

LM238WR2-SPD1
LM238WR2-SPD1 Mōhiohio Taketake
| Tauira tauira | LM238WR2-SPD1 |
|---|---|
| Pae Waitohu | LG Display |
| Tuhinga | a-Si TFT-LCD ,23.8 inch, 3840×2160 |
| Momo Raraunga | a-Si TFT-LCD |
| LM238WR2-SPD1 Utu | Tono Tono me te Waa Whakahaere |
| Waea | LM238WR2 (SP)(D1) |
| Tiaki Tārua. | -20 ~ 60 °C |
| Te Tauira Mahi. | 0 ~ 50 °C |
| Whakaoho | - |
LM238WR2-SPD1 Ngā Hangarau Hangarau
| Waea | LM238WR2 (SP)(D1) |
|---|---|
| Tiaki Tārua. | -20 ~ 60 °C |
| Te Tauira Mahi. | 0 ~ 50 °C |
| Whakaoho | - |
| Te whakatau | 3840(RGB)×2160, UHD |
| Poutuku Puku (mm) | 0.04575×0.13725 (H×V) |
| Hōputu Pika | RGB Vertical Stripe |
| Pihanga Pika (mm) | 0.13725×0.13725 (H×V) |
| Area Mahinga (mm) | 527.04(H) × 296.46(V) |
| Ko te Pee Bezel (mm) | 530.2(H) × 299.6(V) |
| Whakaaturanga Dim. (Mm) | 545(H) × 317.4(V) |
| Te hohonu (mm) | 8.4/12.7 (Typ./Max.) |
| Puka Puka | Flat Rectangle |
| Hanga Hanga | - |
| Whakaaro Ratonga | 16:9 (H:V) |
| Whakatakotoranga | Landscape type |
| Te whakanoho | Rear mounting Pole (6-M3) |
| Taumaha | 1.73/1.82Kgs (Typ./Max.) |
| Maimoatanga | Antiglare, Hard coating (3H) |
LM238WR2-SPD1 Ngā Āhuahira Arotahi
| Waea | LM238WR2 (SP)(D1) |
|---|---|
| Tiaki Tārua. | -20 ~ 60 °C |
| Te Tauira Mahi. | 0 ~ 50 °C |
| Whakaoho | - |
| Te whakatau | 3840(RGB)×2160, UHD |
| Poutuku Puku (mm) | 0.04575×0.13725 (H×V) |
| Hōputu Pika | RGB Vertical Stripe |
| Pihanga Pika (mm) | 0.13725×0.13725 (H×V) |
| Area Mahinga (mm) | 527.04(H) × 296.46(V) |
| Ko te Pee Bezel (mm) | 530.2(H) × 299.6(V) |
| Whakaaturanga Dim. (Mm) | 545(H) × 317.4(V) |
| Te hohonu (mm) | 8.4/12.7 (Typ./Max.) |
| Puka Puka | Flat Rectangle |
| Hanga Hanga | - |
| Whakaaro Ratonga | 16:9 (H:V) |
| Whakatakotoranga | Landscape type |
| Te whakanoho | Rear mounting Pole (6-M3) |
| Taumaha | 1.73/1.82Kgs (Typ./Max.) |
| Maimoatanga | Antiglare, Hard coating (3H) |
| Luminance (cd / m²) | 250(Typ.) |
| Whakatau Ratonga | 1000:1 (Typ.) (Transmissive) |
| Tirohia te Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Whakaatu Aratau | IPS, Normally Black, Transmissive |
| Tirohanga Katoa | Symmetry |
| Whakautu (ms) | 14 (Typ.)(G to G) |
| Ko te Whakariterite White | Wx:0.313; Wy:0.329 |
| Ngā Tae Whakaatu | 1.07B (8-bit + Hi-FRC) |
| Tae Tae | sRGB |
| White Uniformity | 1.33 (Max.)(9 points) |
LM238WR2-SPD1 Hangarau Hangarau
| Waea | LM238WR2 (SP)(D1) |
|---|---|
| Tiaki Tārua. | -20 ~ 60 °C |
| Te Tauira Mahi. | 0 ~ 50 °C |
| Whakaoho | - |
| Te whakatau | 3840(RGB)×2160, UHD |
| Poutuku Puku (mm) | 0.04575×0.13725 (H×V) |
| Hōputu Pika | RGB Vertical Stripe |
| Pihanga Pika (mm) | 0.13725×0.13725 (H×V) |
| Area Mahinga (mm) | 527.04(H) × 296.46(V) |
| Ko te Pee Bezel (mm) | 530.2(H) × 299.6(V) |
| Whakaaturanga Dim. (Mm) | 545(H) × 317.4(V) |
| Te hohonu (mm) | 8.4/12.7 (Typ./Max.) |
| Puka Puka | Flat Rectangle |
| Hanga Hanga | - |
| Whakaaro Ratonga | 16:9 (H:V) |
| Whakatakotoranga | Landscape type |
| Te whakanoho | Rear mounting Pole (6-M3) |
| Taumaha | 1.73/1.82Kgs (Typ./Max.) |
| Maimoatanga | Antiglare, Hard coating (3H) |
| Luminance (cd / m²) | 250(Typ.) |
| Whakatau Ratonga | 1000:1 (Typ.) (Transmissive) |
| Tirohia te Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Whakaatu Aratau | IPS, Normally Black, Transmissive |
| Tirohanga Katoa | Symmetry |
| Whakautu (ms) | 14 (Typ.)(G to G) |
| Ko te Whakariterite White | Wx:0.313; Wy:0.329 |
| Ngā Tae Whakaatu | 1.07B (8-bit + Hi-FRC) |
| Tae Tae | sRGB |
| White Uniformity | 1.33 (Max.)(9 points) |
| Tae Whakatau | 60Hz |
| Whakaaro Whakamuri | No |
| Te Whakataunga Moni | 20.6W (Typ.) |
LM238WR2-SPD1 Atanga Waitohu
| Waea | LM238WR2 (SP)(D1) |
|---|---|
| Tiaki Tārua. | -20 ~ 60 °C |
| Te Tauira Mahi. | 0 ~ 50 °C |
| Whakaoho | - |
| Te whakatau | 3840(RGB)×2160, UHD |
| Poutuku Puku (mm) | 0.04575×0.13725 (H×V) |
| Hōputu Pika | RGB Vertical Stripe |
| Pihanga Pika (mm) | 0.13725×0.13725 (H×V) |
| Area Mahinga (mm) | 527.04(H) × 296.46(V) |
| Ko te Pee Bezel (mm) | 530.2(H) × 299.6(V) |
| Whakaaturanga Dim. (Mm) | 545(H) × 317.4(V) |
| Te hohonu (mm) | 8.4/12.7 (Typ./Max.) |
| Puka Puka | Flat Rectangle |
| Hanga Hanga | - |
| Whakaaro Ratonga | 16:9 (H:V) |
| Whakatakotoranga | Landscape type |
| Te whakanoho | Rear mounting Pole (6-M3) |
| Taumaha | 1.73/1.82Kgs (Typ./Max.) |
| Maimoatanga | Antiglare, Hard coating (3H) |
| Luminance (cd / m²) | 250(Typ.) |
| Whakatau Ratonga | 1000:1 (Typ.) (Transmissive) |
| Tirohia te Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Whakaatu Aratau | IPS, Normally Black, Transmissive |
| Tirohanga Katoa | Symmetry |
| Whakautu (ms) | 14 (Typ.)(G to G) |
| Ko te Whakariterite White | Wx:0.313; Wy:0.329 |
| Ngā Tae Whakaatu | 1.07B (8-bit + Hi-FRC) |
| Tae Tae | sRGB |
| White Uniformity | 1.33 (Max.)(9 points) |
| Tae Whakatau | 60Hz |
| Whakaaro Whakamuri | No |
| Te Whakataunga Moni | 20.6W (Typ.) |
| Whakaaetanga Muku | 10.0V (Typ.) |
| Ngā Whakaaturanga o Naianei | 630/788mA (Typ./Max.) |
| Te kai | 6.3/7.88W (Typ./Max.) |
| Momo Waitohu | eDP (4 Lanes) |
| Haumaru Mamao | - |
| Tūnga | |
| Pana | Pins |
| Maha | Pin Configuration |
LM238WR2-SPD1 Pūnaha Ataata
| Waea | LM238WR2 (SP)(D1) |
|---|---|
| Tiaki Tārua. | -20 ~ 60 °C |
| Te Tauira Mahi. | 0 ~ 50 °C |
| Whakaoho | - |
| Te whakatau | 3840(RGB)×2160, UHD |
| Poutuku Puku (mm) | 0.04575×0.13725 (H×V) |
| Hōputu Pika | RGB Vertical Stripe |
| Pihanga Pika (mm) | 0.13725×0.13725 (H×V) |
| Area Mahinga (mm) | 527.04(H) × 296.46(V) |
| Ko te Pee Bezel (mm) | 530.2(H) × 299.6(V) |
| Whakaaturanga Dim. (Mm) | 545(H) × 317.4(V) |
| Te hohonu (mm) | 8.4/12.7 (Typ./Max.) |
| Puka Puka | Flat Rectangle |
| Hanga Hanga | - |
| Whakaaro Ratonga | 16:9 (H:V) |
| Whakatakotoranga | Landscape type |
| Te whakanoho | Rear mounting Pole (6-M3) |
| Taumaha | 1.73/1.82Kgs (Typ./Max.) |
| Maimoatanga | Antiglare, Hard coating (3H) |
| Luminance (cd / m²) | 250(Typ.) |
| Whakatau Ratonga | 1000:1 (Typ.) (Transmissive) |
| Tirohia te Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Whakaatu Aratau | IPS, Normally Black, Transmissive |
| Tirohanga Katoa | Symmetry |
| Whakautu (ms) | 14 (Typ.)(G to G) |
| Ko te Whakariterite White | Wx:0.313; Wy:0.329 |
| Ngā Tae Whakaatu | 1.07B (8-bit + Hi-FRC) |
| Tae Tae | sRGB |
| White Uniformity | 1.33 (Max.)(9 points) |
| Tae Whakatau | 60Hz |
| Whakaaro Whakamuri | No |
| Te Whakataunga Moni | 20.6W (Typ.) |
| Whakaaetanga Muku | 47.7±3.2V |
| Ngā Whakaaturanga o Naianei | 75/80mA (Typ./Max.) |
| Te kai | 14.3/15.3W (Typ./Max.) |
| Momo Waitohu | eDP (4 Lanes) |
| Haumaru Mamao | - |
| Tūnga | |
| Pana | Pins |
| Maha | Pin Configuration H:Higt VoltageN:No connectionL:Low VoltageA:AnodeC:Cathode" /> |
| Te whakakapi | - |
| Hanga | 4 strings |
| Te wa ora | 30K(Min.) Hours |
| Aratau Arataki | No |
