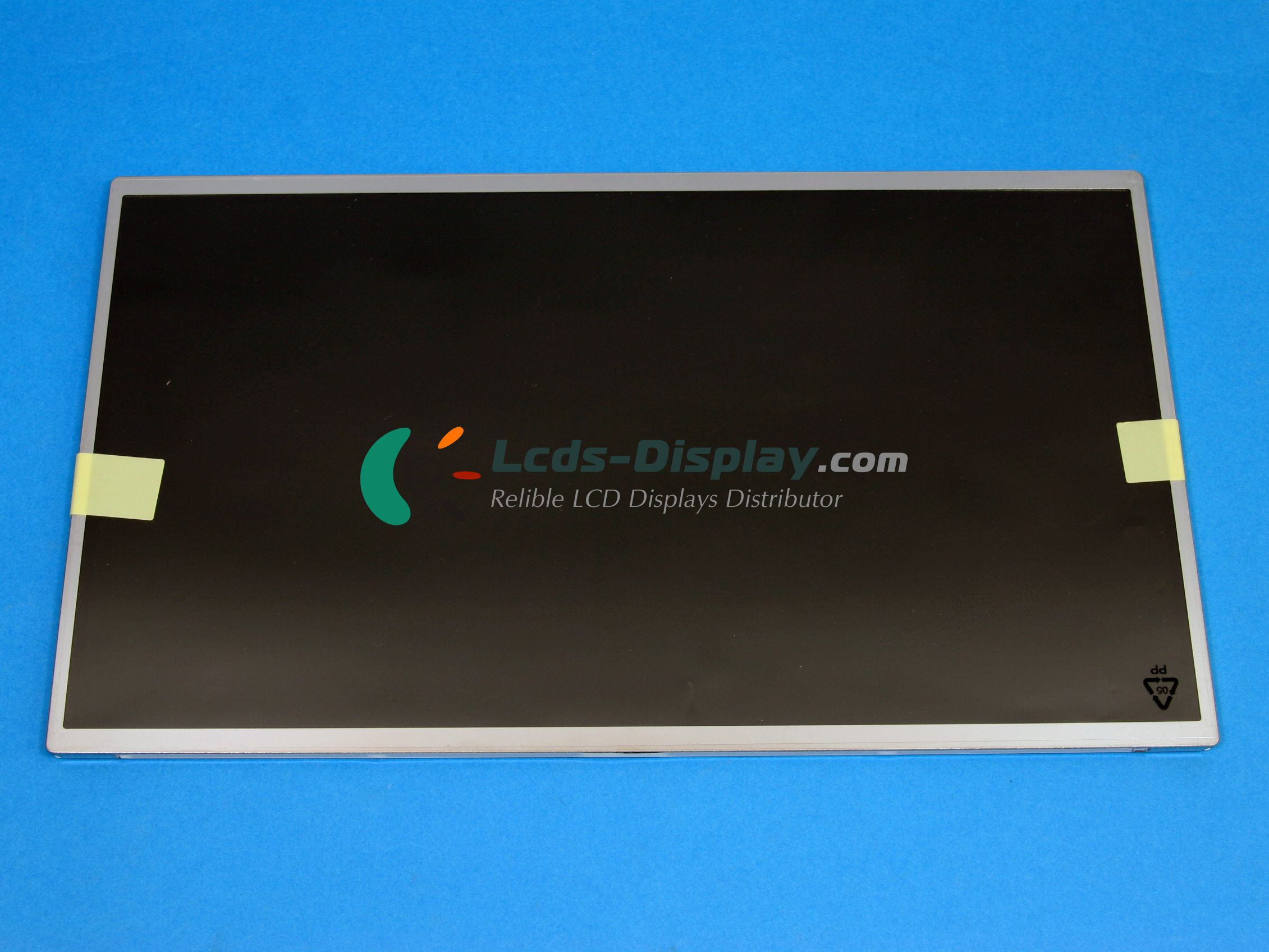

LP140WH1-TLA1
LP140WH1-TLA1 Mōhiohio Taketake
| Tauira tauira | LP140WH1-TLA1 |
|---|---|
| Pae Waitohu | LG Display |
| Tuhinga | a-Si TFT-LCD ,14.0 inch, 1366×768 |
| Momo Raraunga | a-Si TFT-LCD |
| LP140WH1-TLA1 Utu | Tono Tono me te Waa Whakahaere |
| Aratau Tauira | LP140WH1 (TL)(A1) |
| Tae Mahi | 0 ~ 50 °C |
| Haumaru Ruinga | -20 ~ 60 °C |
LP140WH1-TLA1 Ngā Hangarau Hangarau
| Whakatau Whakamutunga | 1366(RGB)×768 (WXGA) |
|---|---|
| Pihikete Pika | RGB Vertical Stripe |
| Pihanga Pika | 112 PPI |
| Whakaaro Ratonga | 16:9 (H:V) |
| Factor Puka | Flat Rectangle Display |
| Poutoro Poto | 0.0755×0.2265 mm (H×V) |
| Pika Pihanga | 0.2265×0.2265 mm (H×V) |
| Taumaha | 350g (Max.) |
| Mata | Glare (Haze 0%), Hard coating (3H) |
| Area Mahinga | 309.399×173.952 mm (H×V) |
| Bezel Area | 314.4×177.4 mm (H×V) |
| Rautaki Whakahuahua | 323.5×192 mm (H×V) |
| Whakaaturanga Whakahuahua | 5.2 (Max.) mm |
| Hanga Hanga | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Horo me nga Poaka | Side mounting holes (6-M2) on left, right bezel |
| Nga Whenua Whenua ranei | Landscape type |
| Pae Tae | Without |
LP140WH1-TLA1 Ngā Āhuahira Arotahi
| Whakaatu Aratau | TN, Normally White, Transmissive |
|---|---|
| Maama | 220 cd/m² (Typ.) |
| Whakatau Ratonga | 500 : 1 (Typ.) (Transmissive) |
| Whakaatu Tae | 262K (6-bit) |
| Tae Tae | 60% NTSC (CIE1931) |
| Wā Whakautu | 16 (Typ.)(Tr+Td) |
| Tirohia te Angle | 40/40/15/30 (Min.)(CR≥10) (L/R/U/D) |
| Tirohanga Whakahaere | 6 o'clock |
| Te tae matomato Kakano | Wx:0.313; Wy:0.329 |
| Te Maama White | 1.40/1.60 (Typ./Max.)(13 points) |
| Maama te Maama | N |
LP140WH1-TLA1 Hangarau Hangarau
| Putanga Poutū | 60Hz |
|---|---|
| Whakaaro Whakamuri | No |
| Te Whakamahinga Mana Utu | 4.8W (Typ.) |
LP140WH1-TLA1 Pūnaha Ataata
| Tumuaki Poko | Edge light type (Top side) |
|---|---|
| Momo Momo | WLED |
| Te wa mo te rama | 15K(Min.) (Hours) |
| Momo Atanga | Included in panel signal interface |
| Papa Pouaka Papa | 3.1/3.3W (Typ./Max.) |
LP140WH1-TLA1 Atanga Waitohu
| Waitohu Waitohu | LVDS |
|---|---|
| Pato Waitohu | LVDS (1 ch, 6-bit) |
| Putanga o te Whakauru mo te Paewhiri | 3.3V (Typ.) |
| Te Whakauru Naianei mo te Paewhiri | 400/465mA (Typ./Max.) |
| Whakaoranga Mana Whakahaere | 1.3/1.5W (Typ./Max.) |
| Momo Atanga | Connector |
| Atanga Waitohu | I-PEX - 20455-040E-02, Pitch:0.5 mm, Pin:40 pins |
