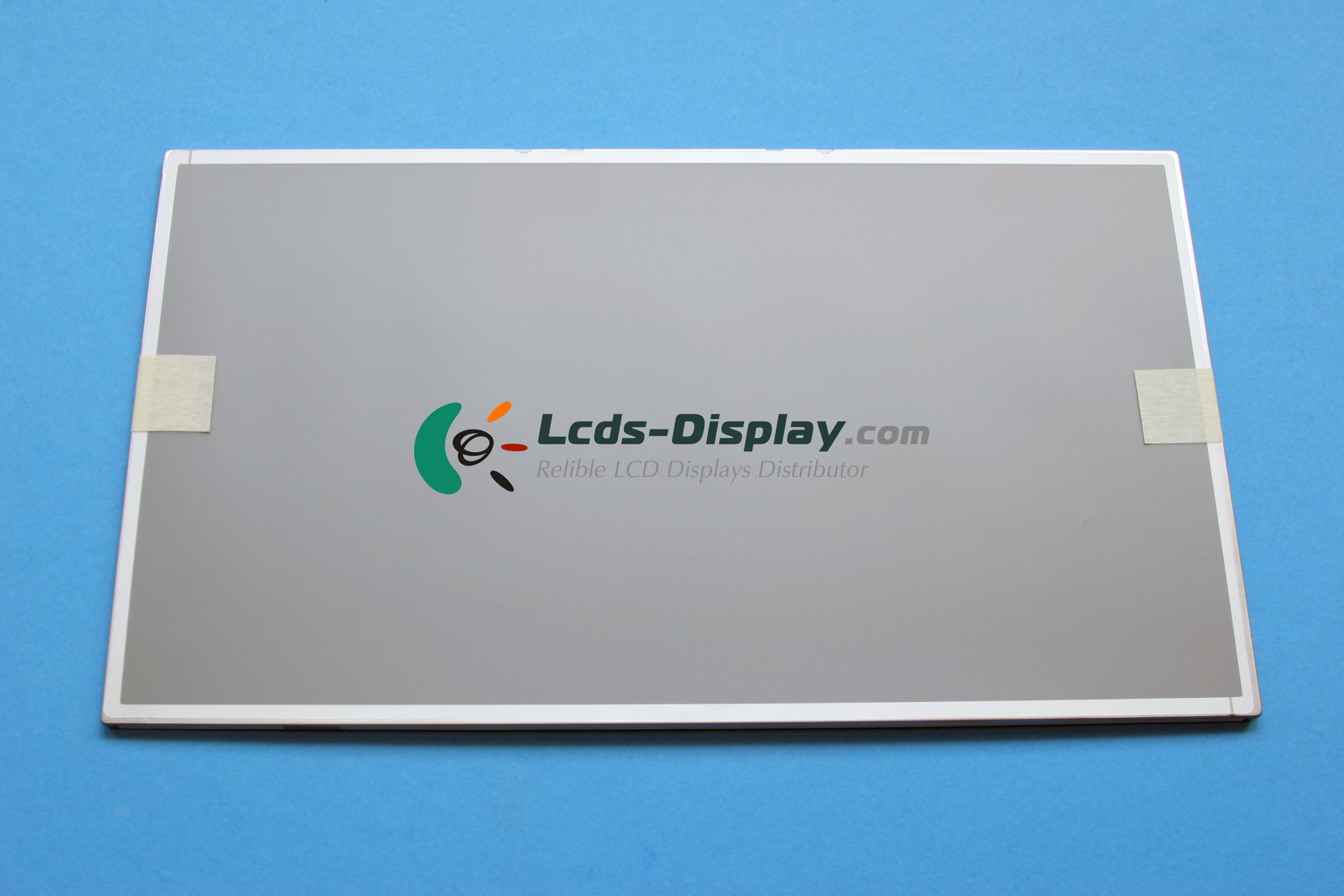

LP140WH1-TLB1
LP140WH1-TLB1 Mōhiohio Taketake
| Tauira tauira | LP140WH1-TLB1 |
|---|---|
| Pae Waitohu | LG Display |
| Tuhinga | a-Si TFT-LCD ,14.0 inch, 1366×768 |
| Momo Raraunga | a-Si TFT-LCD |
| LP140WH1-TLB1 Utu | Tono Tono me te Waa Whakahaere |
| Aratau Tauira | LP140WH1 (TL)(B1) |
| Tae Mahi | 0 ~ 50 °C |
| Haumaru Ruinga | -20 ~ 60 °C |
LP140WH1-TLB1 Ngā Hangarau Hangarau
| Whakatau Whakamutunga | 1366(RGB)×768 (WXGA) |
|---|---|
| Pihikete Pika | RGB Vertical Stripe |
| Pihanga Pika | 112 PPI |
| Whakaaro Ratonga | 16:9 (H:V) |
| Factor Puka | Flat Rectangle Display |
| Poutoro Poto | 0.0755×0.2265 mm (H×V) |
| Pika Pihanga | 0.2265×0.2265 mm (H×V) |
| Taumaha | 340g/350g (Typ./Max.) |
| Mata | Antiglare, Hard coating (3H) |
| Area Mahinga | 309.399×173.952 mm (H×V) |
| Rautaki Whakahuahua | 323.5×192 mm (H×V) |
| Whakaaturanga Whakahuahua | 5.2 (Max.) mm |
| Hanga Hanga | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Nga Whenua Whenua ranei | Landscape type |
| Pae Tae | Without |
LP140WH1-TLB1 Ngā Āhuahira Arotahi
| Whakaatu Aratau | TN, Normally White, Transmissive |
|---|---|
| Maama | 220 cd/m² (Typ.) |
| Whakaatu Tae | 262K (6-bit) |
| Tae Tae | 60% NTSC (CIE1931) |
| Maama te Maama | N |
LP140WH1-TLB1 Hangarau Hangarau
| Putanga Poutū | 60Hz |
|---|---|
| Whakaaro Whakamuri | No |
| Te Whakamahinga Mana Utu | 4.5W (Typ.) |
LP140WH1-TLB1 Pūnaha Ataata
| Tumuaki Poko | Edge light type |
|---|---|
| Momo Momo | WLED |
| Momo Atanga | Included in panel signal interface |
| Papa Pouaka Papa | 7.0/21.0V (Min./Typ.) |
LP140WH1-TLB1 Atanga Waitohu
| Waitohu Waitohu | LVDS |
|---|---|
| Pato Waitohu | LVDS (1 ch, 6-bit) |
| Putanga o te Whakauru mo te Paewhiri | 3.3V (Typ.) |
| Momo Atanga | Connector |
| Atanga Waitohu | I-PEX - 20455-040E-02, Pitch:0.5 mm, Pin:40 pins |
