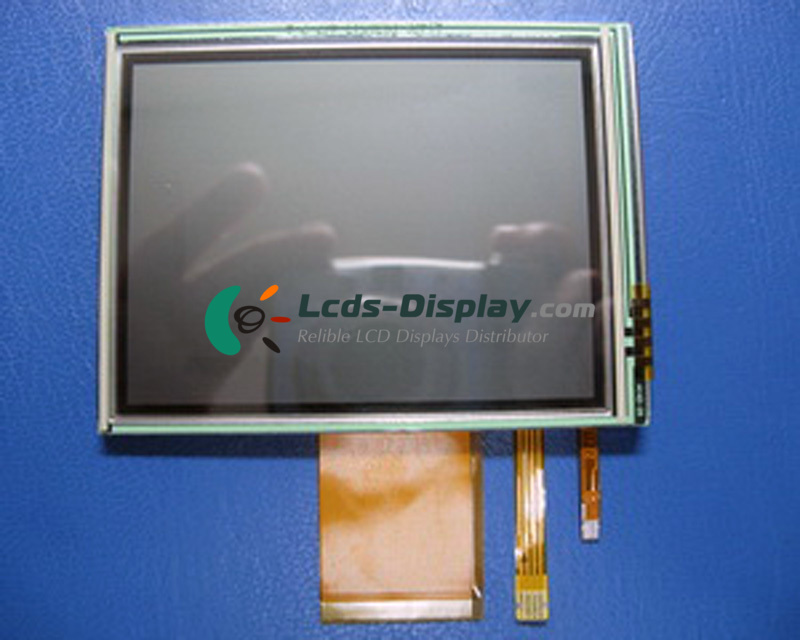

LQ035Q7DB04
LQ035Q7DB04 Mōhiohio Taketake
| Tauira tauira | LQ035Q7DB04 |
|---|---|
| Pae Waitohu | SHARP |
| Tuhinga | a-Si TFT-LCD ,3.5 inch, 240×320 |
| Momo Raraunga | a-Si TFT-LCD |
| LQ035Q7DB04 Utu | Tono Tono me te Waa Whakahaere |
| Tae Mahi | -10 ~ 60 °C |
| Haumaru Ruinga | -25 ~ 70 °C |
| Nga korero | AD-TFT (Advanced TFT) |
LQ035Q7DB04 Ngā Hangarau Hangarau
| Whakatau Whakamutunga | 240(RGB)×320 (QVGA) |
|---|---|
| Pihikete Pika | RGB Vertical Stripe |
| Pihanga Pika | 113 PPI |
| Whakaaro Ratonga | 3:4 (H:V) |
| Factor Puka | Flat Rectangle Display |
| Poutoro Poto | 0.0745×0.2235 mm (H×V) |
| Pika Pihanga | 0.2235×0.2235 mm (H×V) |
| Taumaha | 50g (Typ.) |
| Mata | Hard coating (3H) |
| Area Mahinga | 53.64×71.52 mm (H×V) |
| Bezel Area | 57.3×75.2 mm (H×V) |
| Rautaki Whakahuahua | 65×85 mm (H×V) |
| Whakaaturanga Whakahuahua | 4.5±0.3 mm |
| Nga Whenua Whenua ranei | Portrait type |
| Pae Tae | Embeded (4-wire Resistive) |
LQ035Q7DB04 Ngā Āhuahira Arotahi
| Whakaatu Aratau | TN, Normally White, Transflective |
|---|---|
| Maama | 50 cd/m² (Typ.) |
| Whakatau Ratonga | 8:1 (Typ.) (Reflective) |
| Whakaatu Tae | 262K (6-bit) |
| Wā Whakautu | 60/100 (Typ.)(Tr/Td) |
| Tirohia te Angle | 40/40/40/50 (Typ.)(CR≥10) (L/R/U/D) |
| Tirohanga Whakahaere | 6 o'clock |
| Te tae matomato Kakano | Wx:0.310; Wy:0.340 |
| Te Maama White | 1.43 (Max.)(9 points) |
| Whakaaro Whakaaro | 7/11% (Min./Typ.) |
| Maama te Maama | Y |
LQ035Q7DB04 Hangarau Hangarau
| Putanga Poutū | 60Hz |
|---|---|
| Whakaaro Whakamuri | Yes (U/D, L/R) |
LQ035Q7DB04 Pūnaha Ataata
| Tumuaki Poko | Edge light type |
|---|---|
| Momo Momo | WLED |
| Hanga Hangaira | 1 string |
| Te wa mo te rama | 10K(Typ.) (Hours) |
| Penehi Rama | 21.6/24V (Typ./Max.) |
| Rama i teianei | 15/20mA (Typ./Max.) |
| Whakaoho Whakaoho Rama | 324mW (Typ.) |
| Momo Atanga | FPC |
| Papa Pouaka Papa | No |
LQ035Q7DB04 Atanga Waitohu
| Waitohu Waitohu | TTL |
|---|---|
| Pato Waitohu | Parallel RGB (1 ch, 6-bit) |
| Putanga o te Whakauru mo te Paewhiri | 5.0/3.3/15.0/-10.0V (Typ.)(VSGA/VSHD/VDD/VEE) |
| Te Whakauru Naianei mo te Paewhiri | 2.0/2.0/0.05/-0.05mA (Typ.)(ISHA/ISHD/IDD/IEE) |
| Momo Atanga | FPC |
