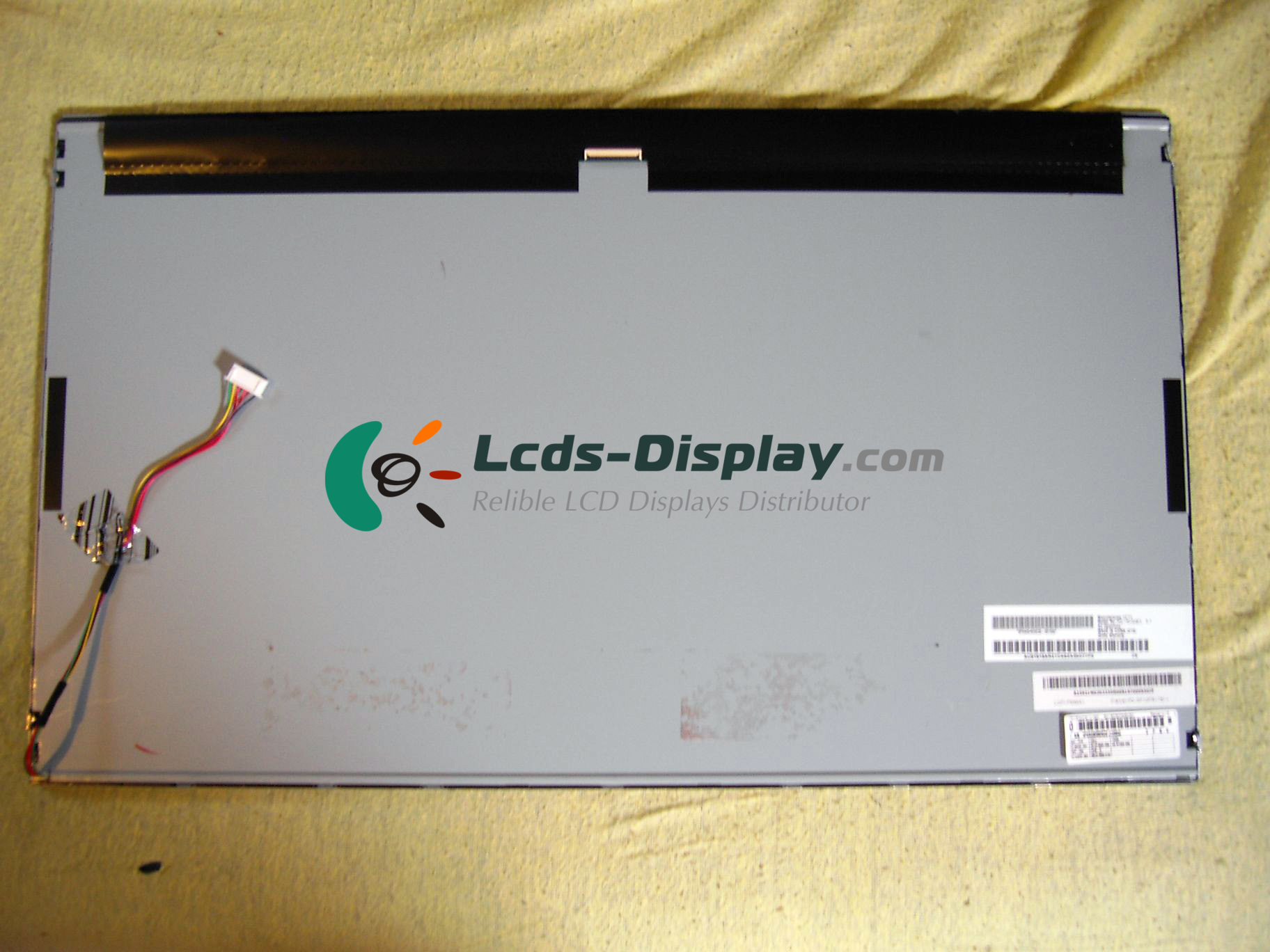

M215HW03 V1Q0
M215HW03 V1Q0 Mōhiohio Taketake
| Tauira tauira | M215HW03 V1Q0 |
|---|---|
| Pae Waitohu | AUO |
| Tuhinga | a-Si TFT-LCD ,21.5 inch, 1920×1080 |
| Momo Raraunga | a-Si TFT-LCD |
| M215HW03 V1Q0 Utu | Tono Tono me te Waa Whakahaere |
| Tae Mahi | 0 ~ 50 °C |
| Haumaru Ruinga | -20 ~ 60 °C |
| Nga korero | TCO Compliance |
M215HW03 V1Q0 Ngā Hangarau Hangarau
| Whakatau Whakamutunga | 1920(RGB)×1080 (FHD) |
|---|---|
| Pihikete Pika | RGB Vertical Stripe |
| Pihanga Pika | 102 PPI |
| Whakaaro Ratonga | 16:9 (H:V) |
| Factor Puka | Flat Rectangle Display |
| Poutoro Poto | 0.08275×0.24825 mm (H×V) |
| Pika Pihanga | 0.24825×0.24825 mm (H×V) |
| Taumaha | 1.70Kgs (Max.) |
| Mata | Antiglare, Hard coating (3H) |
| Area Mahinga | 476.64×268.11 mm (H×V) |
| Bezel Area | 479.84×271.31 mm (H×V) |
| Rautaki Whakahuahua | 495.6×292.2 mm (H×V) |
| Whakaaturanga Whakahuahua | 8.8 (Max.) mm |
| Horo me nga Poaka | Side mounting holes (4-M3) on left, right bezel |
| Nga Whenua Whenua ranei | Landscape type |
| Pae Tae | Without |
M215HW03 V1Q0 Ngā Āhuahira Arotahi
| Whakaatu Aratau | TN, Normally White, Transmissive |
|---|---|
| Maama | 250 cd/m² (Typ.) |
| Whakatau Ratonga | 1000 : 1 (Typ.) (Transmissive) |
| Whakaatu Tae | 16.7M (6-bit + Hi-FRC) |
| Wā Whakautu | 3.8/1.2 (Typ.)(Tr/Td) |
| Tirohia te Angle | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Tirohanga Whakahaere | 6 o'clock |
| Te tae matomato Kakano | Wx:0.313; Wy:0.329 |
| Te Maama White | 1.25/1.33 (Typ./Max.)(9 points) |
| Maama te Maama | N |
M215HW03 V1Q0 Hangarau Hangarau
| Putanga Poutū | 60Hz |
|---|---|
| Whakaaro Whakamuri | No |
| Te Whakamahinga Mana Utu | 16.8W (Typ.) |
M215HW03 V1Q0 Pūnaha Ataata
| Tumuaki Poko | Edge light type (Bottom side) |
|---|---|
| Momo Momo | WLED |
| He nui te raima | 16S4P |
| Hanga Hangaira | 4 strings |
| Te wa mo te rama | 30K(Min.) (Hours) |
| Penehi Rama | 48.0/52.0V (Typ./Max.) |
| Rama i teianei | 42.5/45.0mA (Typ./Max.) |
| Whakaoho Whakaoho Rama | 8.2/9.4W (Typ./Max.) |
| Momo Atanga | Connector |
| Waehere Atanga | |
| Papa Pouaka Papa | No |
M215HW03 V1Q0 Atanga Waitohu
| Waitohu Waitohu | Mini LVDS |
|---|---|
| Pato Waitohu | Mini LVDS |
| Putanga o te Whakauru mo te Paewhiri | 3.3/12.8/27.0/-10.3V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Te Whakauru Naianei mo te Paewhiri | 45/160/13/-18.4V (Typ.)(DIDD/AIDD/IGH/IGL) |
| Momo Atanga | Connector |
| Waehere Atanga | |
| Atanga Waitohu | P-TWO - 196033-40041-3, Pitch:0.5 mm, Pin:40 pins |
