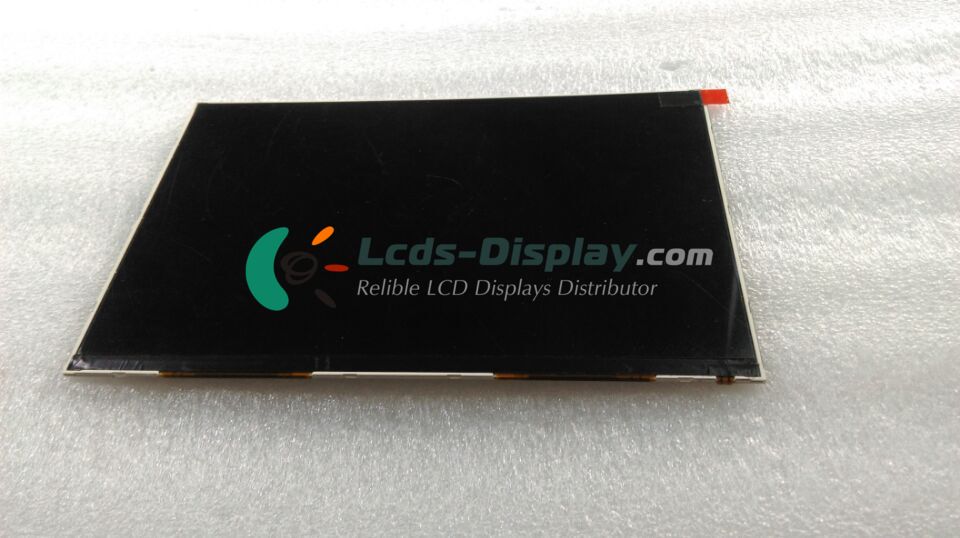

TFT08925601600
TFT08925601600 Mōhiohio Taketake
| Tauira tauira | TFT08925601600 |
|---|---|
| Pae Waitohu | SEBO |
| Tuhinga | a-Si TFT-LCD ,8.9 inch, 2560×1600 |
| Momo Raraunga | a-Si TFT-LCD |
| TFT08925601600 Utu | Tono Tono me te Waa Whakahaere |
| Tae Mahi | -20 ~ 60 °C |
| Haumaru Ruinga | -20 ~ 65 °C |
TFT08925601600 Ngā Hangarau Hangarau
| Whakatau Whakamutunga | 2560(RGB)×1600 (WQXGA) |
|---|---|
| Pihikete Pika | RGB Vertical Stripe |
| Pihanga Pika | 338 PPI |
| Whakaaro Ratonga | 16:10 (H:V) |
| Factor Puka | Flat Rectangle Display |
| Poutoro Poto | 0.025×0.075 mm (H×V) |
| Pika Pihanga | 0.075×0.075 mm (H×V) |
| Area Mahinga | 192×120 mm (H×V) |
| Rautaki Whakahuahua | 200.3×132.1 mm (H×V) |
| Whakaaturanga Whakahuahua | 1.82/3.43 (Typ./Max.) mm |
| Horo me nga Poaka | Without |
| Nga Whenua Whenua ranei | Landscape type |
| Pae Tae | Without |
TFT08925601600 Ngā Āhuahira Arotahi
| Whakaatu Aratau | IPS, Normally Black, Transmissive |
|---|---|
| Maama | 500 cd/m² (Typ.) |
| Whakatau Ratonga | 1200 : 1 (Typ.) (Transmissive) |
| Whakaatu Tae | 16.7M (8-bit) |
| Tae Tae | 72% NTSC (CIE1931) |
| Tirohia te Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Tirohanga Whakahaere | Symmetry |
| Te tae matomato Kakano | Wx:0.310; Wy:0.330 |
| Maama te Maama | N |
TFT08925601600 Hangarau Hangarau
| Putanga Poutū | 60Hz |
|---|---|
| Whakaaro Whakamuri | No |
| Driver IC | Built-in R69429 |
TFT08925601600 Pūnaha Ataata
| Tumuaki Poko | Edge light type |
|---|---|
| Momo Momo | WLED |
| He nui te raima | 6S6P |
| Hanga Hangaira | 6 strings |
| Rama i teianei | 20mA (Typ.) |
| Momo Atanga | Included in panel signal interface |
| Papa Pouaka Papa | No |
TFT08925601600 Atanga Waitohu
| Waitohu Waitohu | MIPI |
|---|---|
| Pato Waitohu | MIPI (2 ch, 4 data lanes) |
| Putanga o te Whakauru mo te Paewhiri | 1.8/3.3V (Typ.)(VDDIO/VBAT) |
| Whakaoranga Mana Whakahaere | 230/300mW (Typ./Max.) |
| Momo Atanga | Connector |
| Atanga Waitohu | HRS - FH36W-61S-0.3SHW(50), Pitch:0.3 mm, Pin:61 pins |
